425-450W N-type TOPCon Technology TOPHiKu6 CS6R Canadian Cell Module Panel Array

Name: 425450W Ntype TOPCon Technology TOPHiKu6 CS6R Canadian Cell Module Panel Array
Brand: CanadianSolar
Price: 0.13 USD

Quality 425-450W N-type TOPCon Technology TOPHiKu6 CS6R Canadian Cell Module Panel Array for sale

Brand Name : CanadianSolar

Model Number : TOPHiKu6_CS6R 425-450W

Place of Origin : Anhui, China

Cell size : 210mmx210mm

Type : N-TYPE, TOPCON

Panel Dimensions : 1722*1134*30

Panel Efficiency : 21.8-23.0%

Warranty : 25years

totipotent : Photovoltaic panel

Cell Type : TOPCon cells

Cell Arrangement : 108 [2 X (9 X 6) ]

Dimensions : 1722*1134*30

Weight : 21.3 kg (47.0 lbs)

Frame : Anodized aluminium alloy

Junction Box : IP68,3 bypass diodes

Connector : T6 or MC4-EVO2 or MC4-EVO2A

Maximum System Voltage : 1500V (IEC/UL) or 1000V (IEC/UL)

Maximum Series Fuse Rating : 25A

MOQ : 10000 watts

Price : $0.13/watts >=10000 watts

Contact Now

Products Description

425-450W N-type TOPCon Technology TOPHiKu6 CS6R Canadian Cell Module Panel Array

Cell Type	TOPCon cells
Cell Arrangement	108 [2 X (9 X 6) ]
Dimensions	1722 ˣ 1134 ˣ 30 mm (67.8 ˣ 44.6 ˣ 1.18 in)
Weight	21.3 kg (47.0 lbs)
Front Glass	3.2 mm tempered glass with anti reflective coating
Frame	Anodized aluminium alloy
J-Box	IP68, 3 bypass diodes
Cable	4.0 mm² (IEC), 12 AWG (UL)
Cable Length (Including Connector)	Portrait: 300 mm (11.8 in) (+) / 200 mm (7.9 in) (-); landscape: 1100 mm (43.3 in)
Connector	T6 or MC4-EVO2 or MC4-EVO2A
Per Pallet	35 pieces
Per Container (40' HQ)	910 pieces or 840 pieces (only for US & Canada)

Our Products

Global Pipeline in Key Regions

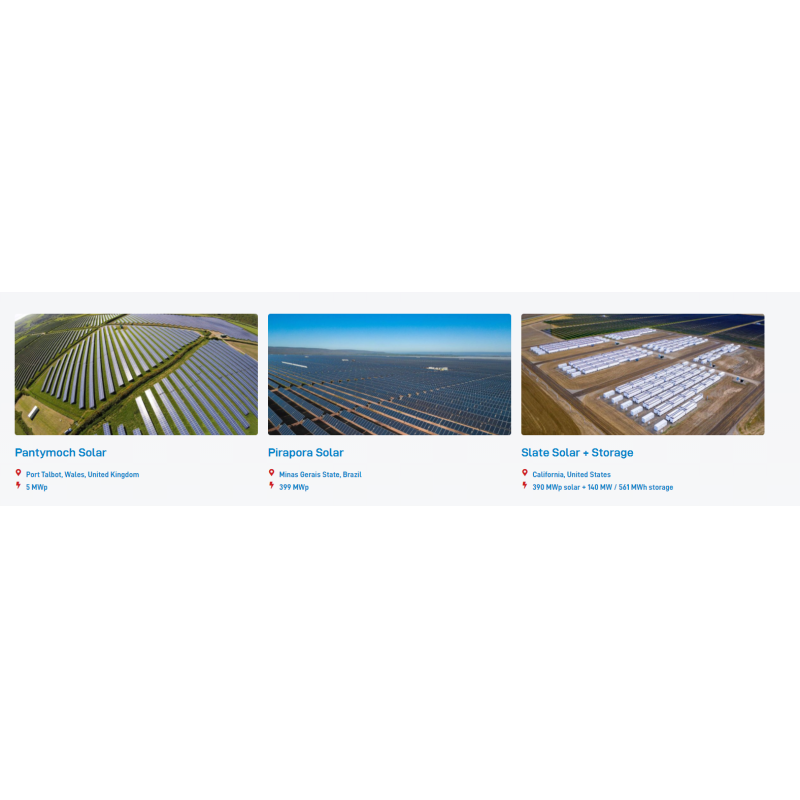

Featured Projects

Product packaging

Application program

Company Profile

Hefei Sunrise New Energy Co.,Ltd is a professional and fast growing company with more than 10 years experience in New energy field, located in Hefei city ,Anhui province .Our company is committed to high efficient and clean energy research and development ,and bring quick & professional service to our customers in all aspects of solar products and projects.
Being the top distributor of Tier 1 solar product brands including Longi, Sungrow, Trina, JA, Canadian, Growatt, Goodwe, Sunrise provides not only solar panels and solar inverters,but also system integration for on-grid systems, off-grid systems, energy storage systems, etc.
Our products have been sold to many countries and regions in Europe, North America, the Middle East and South Africa,etc. also have got certificates of TUV, CE, CQC , etc .
To complete the most intimate cooperation, We will provide customers with the best quality products & service,and sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation .

FAQ

1. What is your main products?
Our main products including Solar Panel, Inverter, Battery,Solar System, Mounting System and other related Solar Power Accessories;

2. Are you a factory or trading company ?
We are a professional Solar energy products manufacturer in China with own factory and the advanced production line ,can ensure superior supply capacity.

3.How can you guarantee your product quality ?
We will provide a pre-production sample before mass production, Each product will after several inspection procedures before shipment;

4.Could you print our company logo in nameplate and package ?
Yes ,we can customized your logo according to your design and request;

5. What if I don't have export experience ?
We have reliable forwarder agent which can ship items to you by Sea/Air/Express to your seaport or doorstep.Anyway, we will help you choose the most suitable shipping service.

425-450W N-type TOPCon Technology TOPHiKu6 CS6R Canadian Cell Module Panel Array Images
